System Introduction

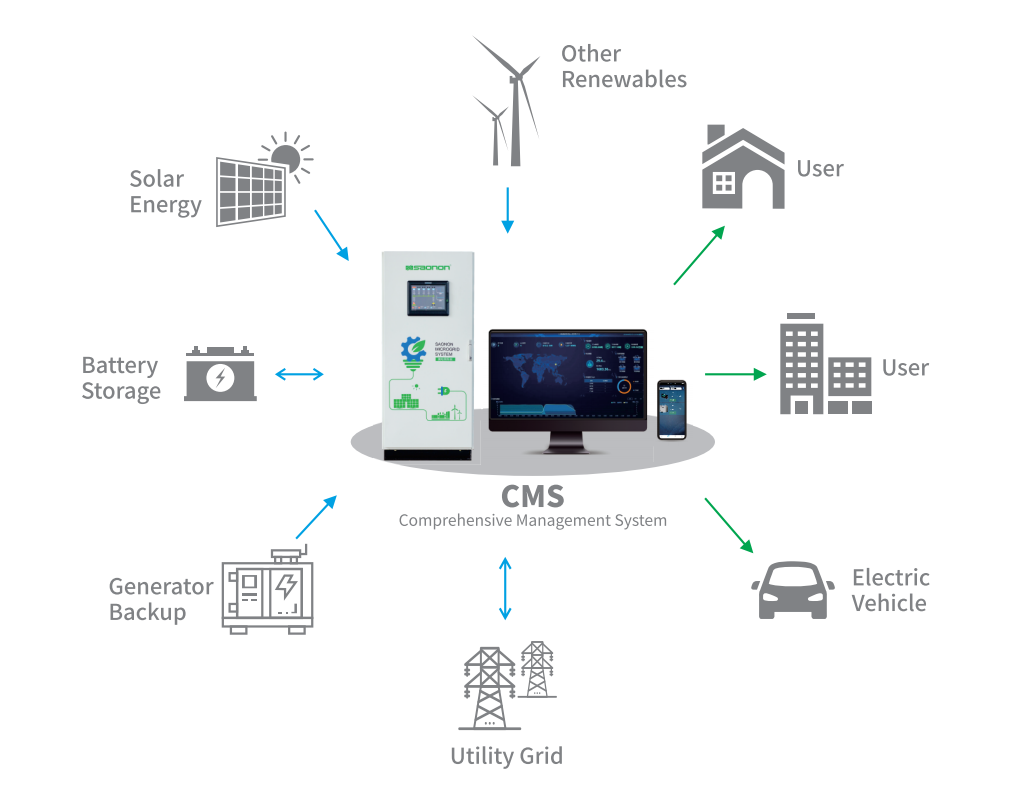

The Comprehensive Management System (CMS) independently developed by SAONON is the information hub and commander of a microgrid that performs comprehensive data management, such as data collection, strategy operation, function control, model analysis and device status, on the various devices of the microgrid. CMS can achieve complementation of multiple energy sources, maximize utilization of renewable energy, lower power generation cost and reduce carbon emission by monitoring and controlling power stations and energy equipment such as solar power, energy storage systems, generator, wind power, charging pile, and auxiliary equipment.

System Characteristics

SAONON CMS adopts the most advanced and most extensively used C/S master-slave distributed architecture and an embedded microcomputer server to support the system's reliable and stable operation.

1、Unified management: The distributed management solutions controlled by the master station are compatible with many mainstream brands such as PV Inverter, PCS, BMS, GenSet and recharging piles.

2、Electric power optimization: Smooth the output power of renewable energy and generating sets, and maximize the utilization of solar power, wind power and energy storage systems

3、Intelligent operation and maintenance: Control based on intelligent strategy helps to realize the automatic power adjustment of solar power, wind power and energy storage systems and the ms-level capability of response to load changing suddenly

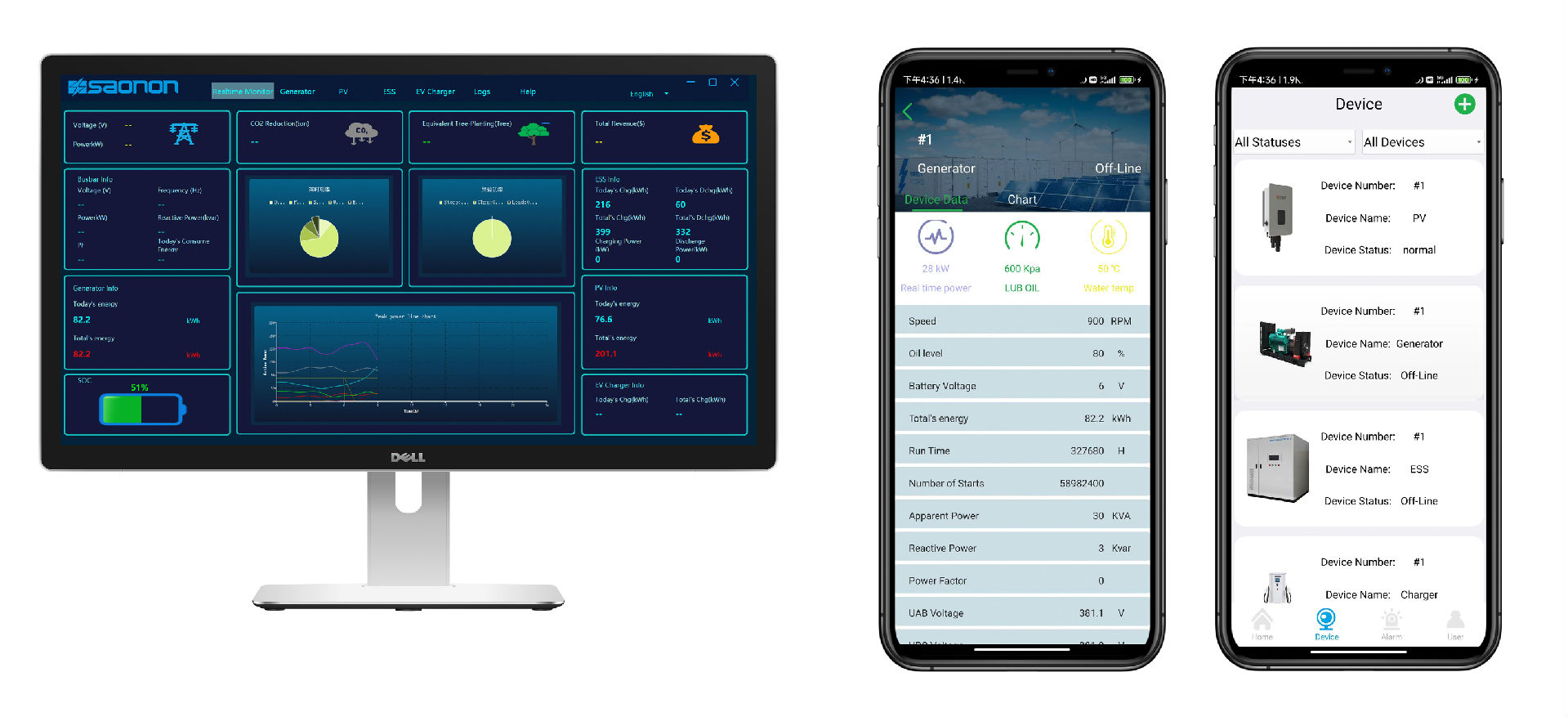

4、Data insight: Data can be saved automatically in real time, and the system has the functions of data management and trend chart analysis, as well as complete monitoring and protection, operation and record keeping and report output, making it convenient for users to manage

System Functions

1、Control of the maximum demand for solar power, wind power and other renewable energy

2、Peak cut, recharging/discharging control of energy storage, and provision of active and reactive power support

3、VF grid-forming, PQ grid-connected and VSG virtual synchronous generator technology

4、Grid-mode anti-reflux control

5、Co-directional parallel connection and anti-synchronous control of generating sets

6、Data transmission via 4G/5G/WIFI, SCADA and APP cloud is available, and a multi-tiered framework covering cloud, network, edge and end is realized
